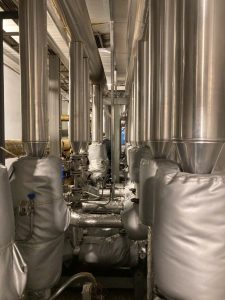

This is one of the most practical questions plant teams ask when evaluating insulation jackets for valves, flanges, elbows, tees, pipes, and other hot equipment: can the outer surface temperature be reduced to a safer level for accidental human contact after installation?
The short answer is: yes, it can, but it should never be assumed by default. Real-world performance depends on operating temperature, insulation core material, thickness, fabrication quality, sealing quality after installation, environmental conditions, and the surface temperature target used by the site.
In a serious B2B engineering context, the right objective is not to claim “install it and it becomes safe automatically.” The correct objective is to design the insulation jacket system so the outer surface reaches a defined target temperature that can be verified in the field.
What does a safer touch limit usually mean?
In industrial practice, many EHS teams and engineers use about 60°C (140°F) as an important reference point when discussing human burn risk from hot surfaces. However, this should not be treated as an absolute universal safe-touch temperature for all exposure conditions. It is better understood as a practical evaluation threshold for contact-burn risk.
References such as OSHA guidance and ASTM C1055 show that burn risk depends on several factors, including:
- actual surface temperature;
- contact duration;
- surface material;
- body area exposed;
- real operating conditions in the field.
That is why a plant should treat “safe to touch” as an engineering target that must be defined, designed for, and verified after installation.
Can insulation jackets reduce surface temperature?
Yes. This is one of the strongest practical benefits of removable insulation jackets. When properly designed, they help:
- reduce heat transfer from hot metal surfaces to the surrounding environment;
- lower the outer jacket surface temperature significantly;
- reduce burn risk around valves, flanges, elbows, and piping;
- cut heat loss and improve energy performance at the same time.
However, the amount of temperature reduction is never identical across applications. A 180°C steam valve and a 320°C hot oil flange will not behave the same way even if they use a similar insulation configuration.
What determines whether the surface can be brought below the target limit?
1. Actual operating temperature
This is the first variable and one of the most commonly underestimated. Many sites use nominal line temperature, while peak temperature at valves, flanges, or points near the heat source may be much higher. If the input temperature is wrong, the design target can easily fail.
2. Insulation core material
Glasswool, Rockwool, Ceramic fiber, and Aerogel all perform differently in terms of temperature resistance, density, shape retention, and thermal performance. The wrong material or the wrong grade can leave the outer surface hotter than expected, especially in high-temperature or vibration-prone service.
3. Insulation thickness
Many systems still run hot on the outside because thickness was selected by budget rather than by thermal design. If the goal is to reach a specific outer surface temperature, thickness must be chosen based on operating temperature, ambient condition, and material thermal performance.
4. Fit-up and fabrication quality
Even a good material can underperform if the jacket has edge gaps, poor fit, or incomplete coverage around a complex geometry. In real plants, hot spots often appear not on the main body, but at seams, closure areas, and removable access points.
5. Field environment
Wind, rain, humidity, outdoor exposure, chemicals, and vibration all affect long-term performance. A design that reaches the target in a dry indoor area may not maintain the same result outdoors if the outer cover is not built for weather and moisture resistance.
When are insulation jackets more likely to achieve a safer surface target?
The probability of reaching a safer surface range is much higher when:
- the real operating temperature has been measured or confirmed accurately;
- the core material matches the true service range;
- thickness is selected according to the surface-temperature target, not by guesswork;
- the jacket is custom-fabricated for the actual equipment geometry;
- seams, closures, and removable sections are designed to minimize gaps;
- post-installation verification is performed with an infrared thermometer or thermal camera.
In other words, insulation jackets do not create safety automatically just by being present; the safety result comes from correct design and correct verification.
Common misconceptions
“If it is insulated, it must be safe to touch”
Not necessarily. In high-temperature service, the outer surface may still require controlled access, warning labels, or guarded work practice. Insulation jackets can reduce risk significantly, but they should not be sold as an unconditional promise without measurement.
“The thicker the better”
Not always. More thickness can reduce surface temperature further, but it also increases weight, affects removability, and may be unnecessary for the actual target. The correct solution is optimization based on the thermal and maintenance requirements of the application.
“If it passed once, it will always stay in that range”
Also incorrect. If the insulation absorbs moisture, settles, degrades, or the outer cover deteriorates, surface temperature can rise again. That is why periodic inspection is important, especially at valves, flanges, elbows, and Y-strainers.
How engineers should verify performance in the field
- Measure surface temperature before installing the jacket.
- Define the target outer surface temperature after installation.
- Select material and thickness based on real operating conditions.
- Install carefully, paying close attention to seams and closures.
- Measure again after the system reaches stable operation.
- Use thermal imaging when possible to detect localized hot spots.
This is a far more reliable approach than simply asking whether the system is “safe” without data.
Safety target and energy target often go together
One important advantage of insulation jackets is that the burn-protection objective usually aligns with the energy-efficiency objective. When the outer surface temperature is reduced appropriately, heat loss to the environment also drops. A well-designed system can therefore improve operator safety and reduce energy cost at the same time.
When should a system be reassessed?
- Surface temperature remains abnormally high at certain locations.
- Valves, flanges, or elbows show repeated edge gaps after maintenance.
- Outdoor equipment is frequently exposed to moisture.
- Maintenance teams report difficult removal or poor reinstall fit.
- The plant needs measured evidence for safety performance.
Conclusion
Insulation jackets can reduce surface temperature below a safer target range for human contact, but only when the system is designed around real operating temperature, correct material selection, correct thickness, correct fit-up, and post-installation verification.
For B2B industrial applications, the right approach is not to make vague safety claims, but to turn “safer touch temperature” into a measurable engineering criterion that can be designed and verified in the field.
If your plant needs to evaluate whether existing valves, flanges, or hot piping can be brought closer to a safer surface-temperature target, FlexInsul can support survey, material selection, and insulation jacket configuration for each equipment location.
